Description and Operation: Description

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

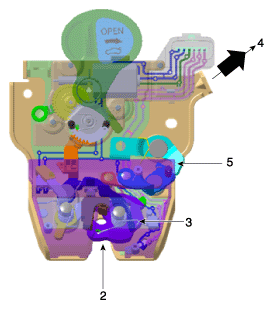

  1. Power latch lock flow
    G11342494Courtesy of
    1. When the trunk being open closes, the striker get locked.
    2. The CLAW rotates (1st step close).
    3. When the 1st step close is detected, the cinching cable starts rotating.
    4. The cinching lever starts operating.
    5. The CLAW rotates for the operation of the cinching lever (2nd step close).
    6. Trunk is completely closed.
  2. Power latch unlock flow
    1. The operation principle of PTM unlock process is equal to that of the general trunk latch.
    2. The unlock process is completed by using the motor in the power latch.
