Components and Components Location: Component

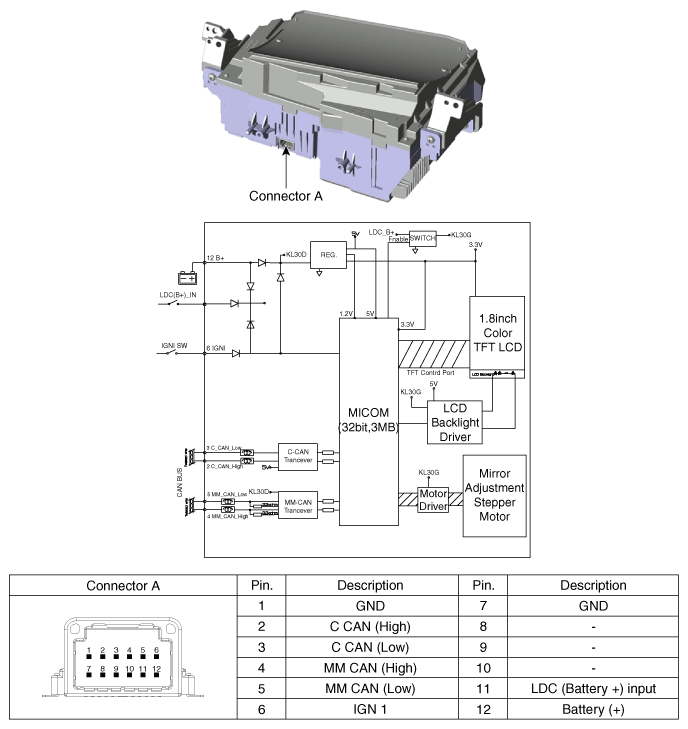

Fig 1: Head Up Display Unit Circuit Diagram

G11419800

Courtesy of HYUNDAI MOTOR AMERICA
