Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad side cover.

    (Refer to Body - "CRASH PAD ")

  3. Remove the lower panel.

    (Refer to Body - "CRASH PAD ")

  4. Remove the lower crash pad switch assembly by using the scraper and then disconnect the connectors.

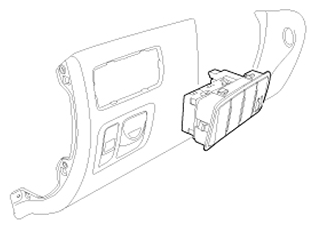

    Fig 1: Removing Lower Crash Pad Switch Assembly By Using Scraper
    G11405187Courtesy of HYUNDAI MOTOR AMERICA
  5. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 2: ESC Switch Connector Terminals
    G11405188Courtesy of HYUNDAI MOTOR AMERICA
