Toe Adjustment

  1. Loosen the nut hoding of assist arm cam bolt (A).
  2. Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolt by the same amount.

    Toe

    Total: 0.46°±0.2°

    Individual: 0.23° ± 0.1°

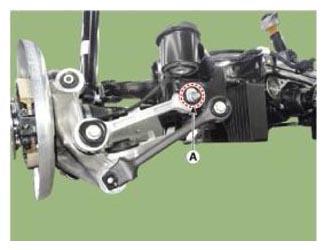

    Fig 1: Locating Rear Assist Arm Cam Bolt
    G11407604Courtesy of HYUNDAI MOTOR AMERICA
    Item Direction of rotation Toe
    Left side Clockwise Decrease (Toe out)
    Counter clockwise Increase (Toe in)
    Right side Clockwise Increase (Toe in)
    Counter clockwise Decrease (Toe out)
