Repair Procedures: Disassembly

Remove the screw and then separate the lower cover.

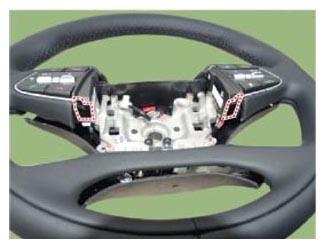

Fig 1: Removing Steering Wheel Lower Cover Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the screw and then separate the upper cover (A).

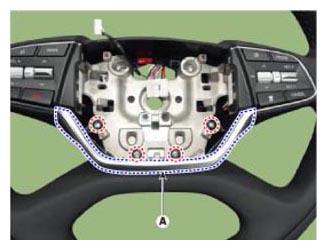

Fig 2: Locating Steering Wheel Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the steering wheel connector.

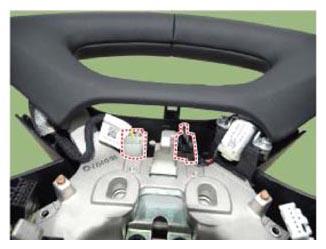

Fig 3: Steering Wheel Connector (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Steering Wheel Connector (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the lower cover from the steering wheel and then separate the wiring.

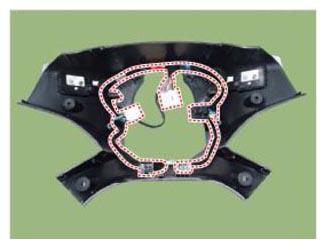

Fig 5: Steering Wheel Wiring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the screw and then remove the remote control switch.

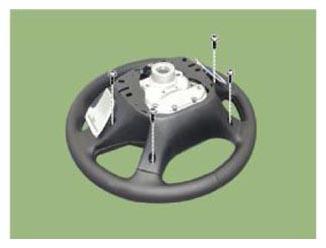

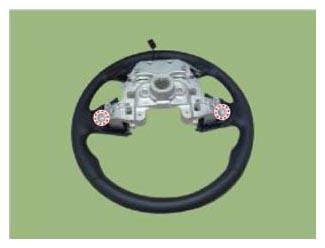

Fig 6: Remote Control Switch Screws
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
