Ignition System - 3.3L
>>
Spark Plug
>>
Specifications
>>
Circuit Diagram
Circuit Diagram

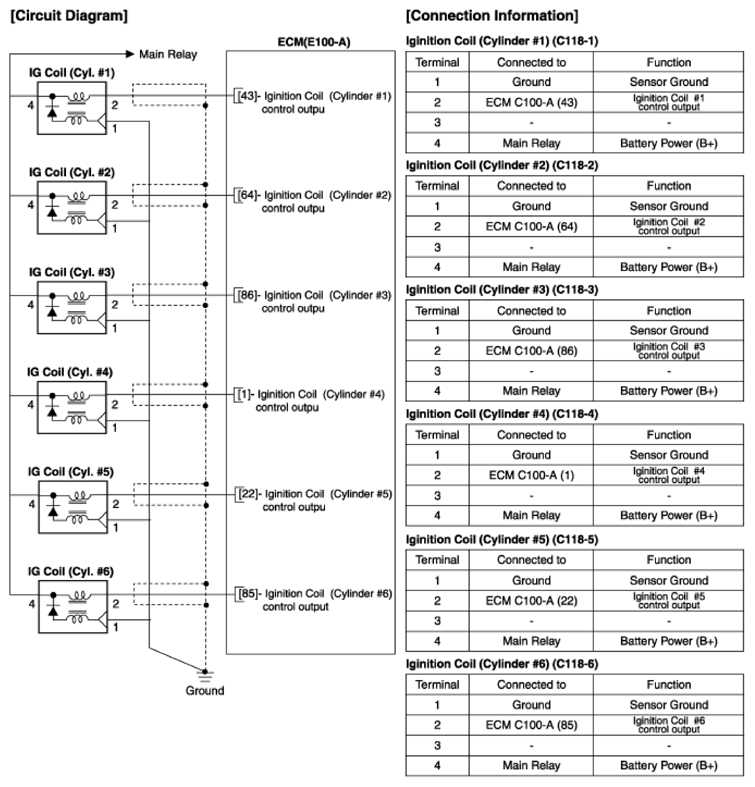

Fig 1: Ignition Coil Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

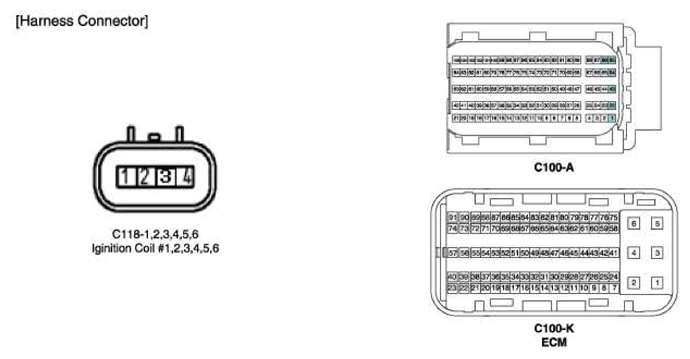

Fig 2: Ignition Coil Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
