On-Vehicle Inspection

Inspect Ignition Coil Assembly and Perform Spark Test

1. Check for DTCs.
   NOTE:

   • If a DTC is present, perform troubleshooting in accordance with the procedure for that DTC. (Refer to DTC ENGINE ELECTRICAL SYSTEM - GENERAL INFORMATION - 3.3L procedure)
2. Check if sparks occur.
   1. Remove the engine cover.
   2. Remove the ignition coils.
   3. Using a spark plug wrench, remove the spark plugs.
   4. Disconnect the injector extension connectors.
   5. Ground the spark plug to the engine.
      Fig 1: Grounding Spark Plug To Engine

      Courtesy of HYUNDAI MOTOR AMERICA
   6. Check if sparks occur at each spark plug while engine is being cranked.
      NOTE:

      • Do Not crank the engine for more than 5 seconds.
3. If sparks do not occur, perform the following test.

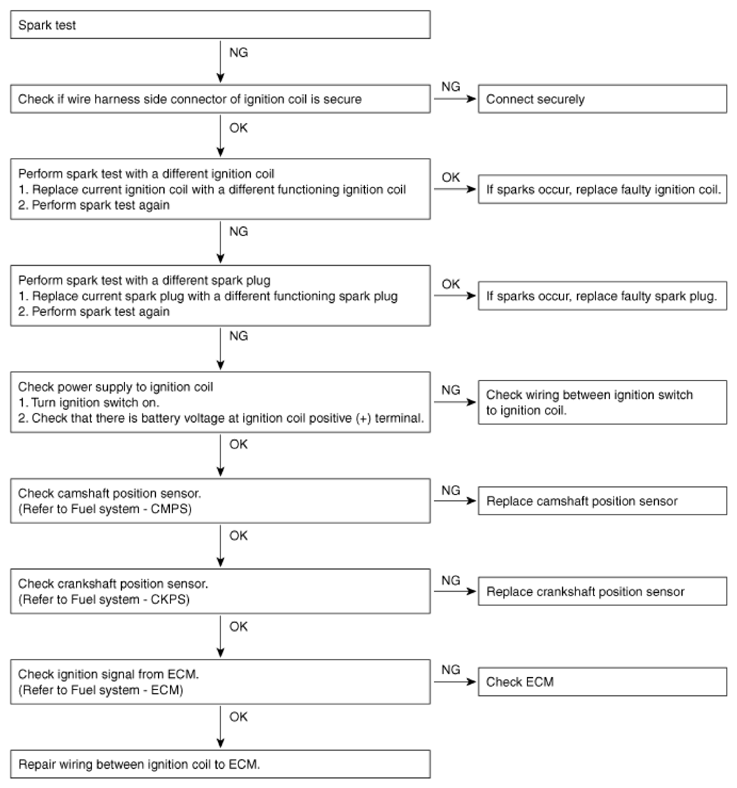

   Fig 2: Spark Test Flowchart

   Courtesy of HYUNDAI MOTOR AMERICA
4. Using a spark plug wrench, install spark plugs.
5. Install the ignition coils.
6. Install the engine cover.
