Repair Procedure: Inspection: Notes

  1. Remove the ignition coil.

    (Refer to "Removal ")

  2. Measure the primary coil resistance between terminals.

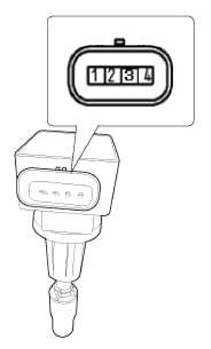

Fig 1: Primary Coil Terminals Location
G11411981Courtesy of HYUNDAI MOTOR AMERICA
