Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the trunk rear transverse trim.
- Fold the luggage side trim (LH).

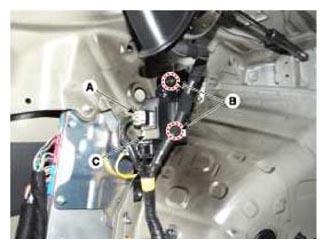

- Disconnect the fuel pump control module connector (A).
- Remove the mounting nuts (B), and then remove the fuel pump control module (C) from the vehicle.
