Repair Procedures: Inspection

Start the engine.

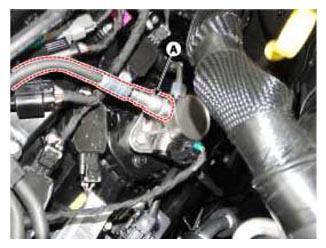

Check the fuel feed line (A) installation state and fuel leakage state.

Fig 1: Fuel Feed Line
Courtesy of HYUNDAI MOTOR AMERICA
Fold the rear seat cushion.

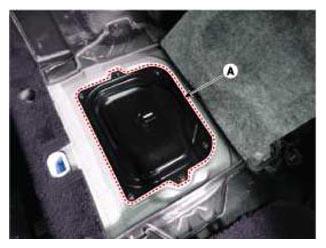

Remove the fuel pump service cover (A) after loosening the screws.

Fig 2: Fuel Pump Service Cover
Courtesy of HYUNDAI MOTOR AMERICA

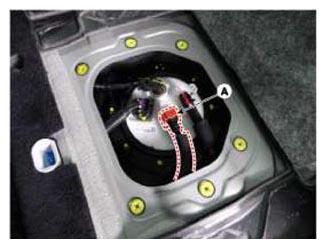

Check the fuel feed quick-connector (A) installation state and fuel leakage state.

Fig 3: Fuel Feed Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA

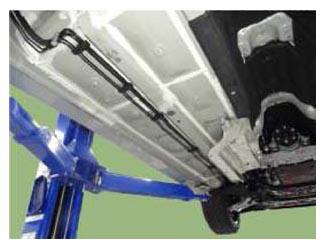

Lift the vehicle.
Check the fuel leakage state.

Fig 4: Lifting Vehicle
Courtesy of HYUNDAI MOTOR AMERICA
Replace the fuel line after checking the abnormal fuel line.
(Refer to Fuel Delivery System - "FUEL LINE ")
