Components Location: Troubleshooting

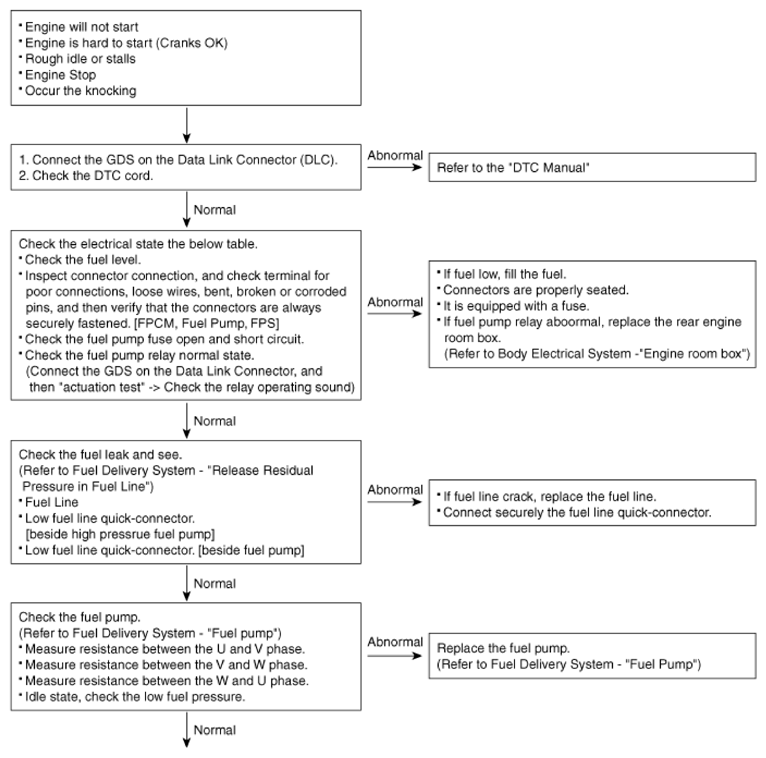

Fig 1: Troubleshooting Flow Chart (1 Of 2)

G11412249

Courtesy of HYUNDAI MOTOR AMERICA

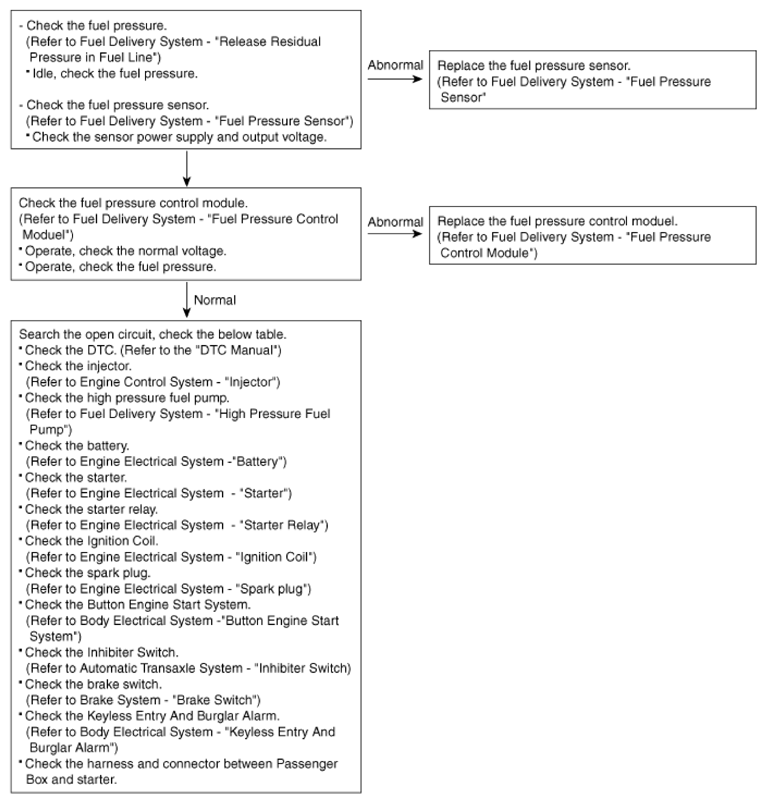

Fig 2: Troubleshooting Flow Chart (2 Of 2)

G11412250

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Check the fuel pressure after replacing parts.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
