Signal Waveform

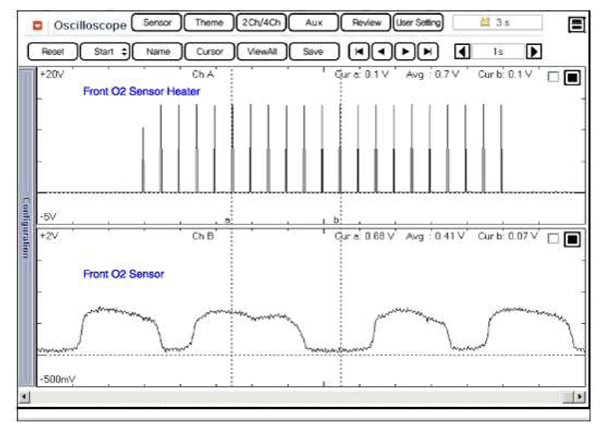

Fig 1: Screen Display - Front O2 Sensor Heater Signal Waveform
G11412169Courtesy of HYUNDAI MOTOR AMERICA

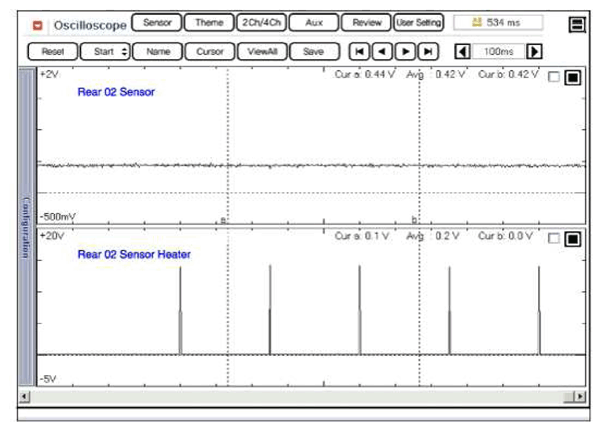

Fig 2: Screen Display - Rear O2 Sensor Heater Signal Waveform
G11412170Courtesy of HYUNDAI MOTOR AMERICA
