Repair Procedures: Removal

[Bank 1]

WARNING:
  • Don't remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intake hose.

    (Refer to Engine Mechanical System - "INTAKE & EXHAUST SYSTEM - 3.3L ")

  3. Disconnect the camshaft position sensor connector (A).
  4. Remove the installation bolt (B), and then vertically remove the sensor from the cylinder head.

    [Bank 1 / Intake]

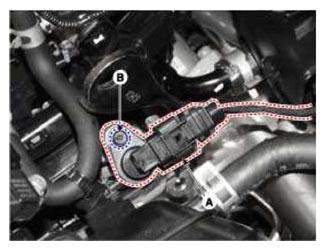

    Fig 1: Camshaft Position Sensor Connector And Installation Bolts - Bank 1 / Intake
    G11412158Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 1 / Exhaust]

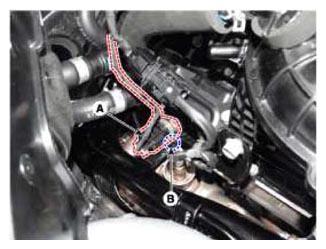

    Fig 2: Camshaft Position Sensor Connector And Installation Bolts - Bank 1 / Exhaust
    G11412159Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

WARNING:
  • Don't remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  3. Disconnect the camshaft position sensor connector (A).
  4. Remove the installation bolt (B), and then vertically remove the sensor from the cylinder head.

    [Bank 2 / Intake]

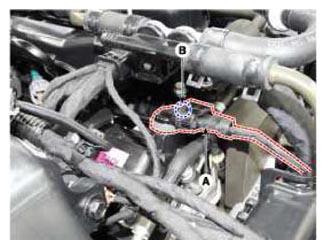

    Fig 3: Camshaft Position Sensor Connector And Installation Bolts - Bank 2 / Intake
    G11412160Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 2 / Exhaust]

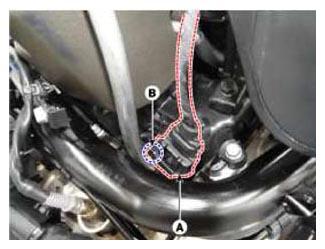

    Fig 4: Camshaft Position Sensor Connector And Installation Bolts - Bank 2 / Exhaust
    G11412161Courtesy of HYUNDAI MOTOR AMERICA
