Repair Procedures: Removal

Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")
Remove the high-pitch horn (A) after disconnecting the connector (B) and loosening the mounting bolts.

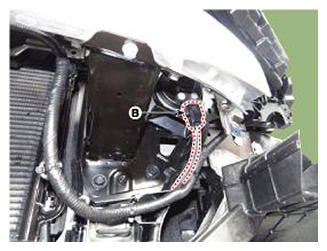

Fig 1: Removing High-Pitch Horn With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

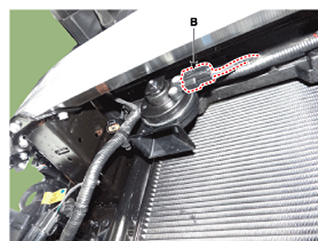

Fig 2: Locating High-Pitch Horn Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the low-pitch horn (B) after disconnecting the connector (A) and loosening the mounting bolts.

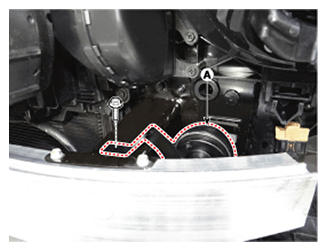

Fig 3: Removing Low-Pitch Horn With Mounting Bolt

Courtesy of HYUNDAI MOTOR AMERICA

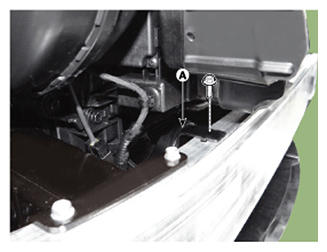

Fig 4: Locating Low-Pitch Horn Connector

Courtesy of HYUNDAI MOTOR AMERICA
