Terminal Function

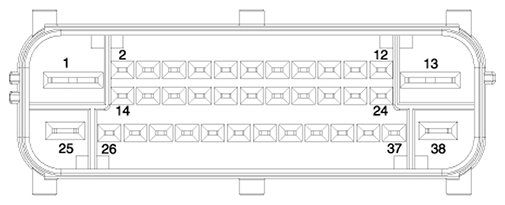

Fig 1: ESC (Electronic Stability Control) System Connector Terminals
G11405129Courtesy of HYUNDAI MOTOR AMERICA
Pin No Description Current(m/A) Resistance(m/Ω)
MAX
1 Battery 2 (+) 137 10
2 POWERTRAIN CAN LOW 30 250
3 - - -
4 - - -
5 - - -
6 - - -
7 - - -
8 - - -
9 - - -
10 - - -
11 Parking brake switch 10 250
12 - - -
13 Ground 137 10
14 POWERTRAIN CAN HIGH 30 250
15 Auto Hold Switch 10 250
16 Stop Lamp Switch 10 250
17 Wheel speed sensor output 16 250
18 Front wheel Sensor power RH 30 250
19 Rear wheel Sensor power RH 30 250
20 Rear wheel Sensor signal LH 16.8 250
21 Front wheel Sensor signal LH 16.8 250
22 C-CAN HIGH 30 250
23 - - -
24 - - -
25 Battery 1 (+) 40 10
26 - - -
27 - - -
28 - - -
29 HECU (IGN) 50 60
30 Vacuum pump switch signal 10 250
31 Front wheel Sensor signalRH 16.8 250
32 Rear wheel Sensor signal RH 16.8 250
33 Rear wheel Sensor power LH 30 250
34 Front wheel Sensor power LH 30 250
35 C-CAN LOW 30 250
36 - - -
37 - - -
38 Ground 40 10
