Repair Procedures: Removal

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

Use seat covers to avoid damaging any surfaces.

Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")
Using a screwdriver or remover, remove the windshield glass upper molding (A).

Fig 1: Removing Windshield Glass Upper Molding
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the windshield glass molding (A).

Fig 2: Locating Windshield Glass Molding
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the windshield glass molding bracket (A).

Fig 3: Removing Windshield Glass Molding Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Using a cutter (A) knife, carefully remove the windshield glass molding.
Information
- Use the cutter with a 20 to 30 cm-long blade.
Fig 4: Removing Windshield Glass Molding Using Cutter
Courtesy of HYUNDAI MOTOR AMERICA

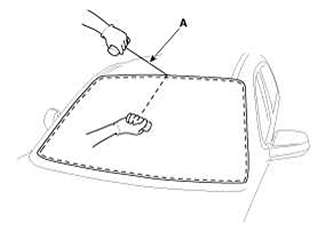

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 5: Locating Sealant On Edge
Courtesy of HYUNDAI MOTOR AMERICA

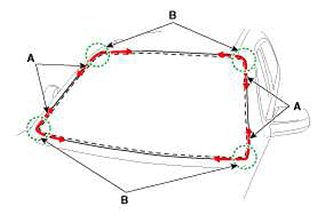

Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

Fig 6: Inserting Piano Wire Through Corner Of Windshield Glass
Courtesy of HYUNDAI MOTOR AMERICA

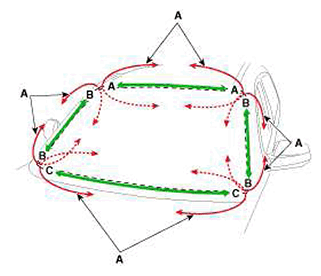

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 7: Locating Sealants Of Glass
Courtesy of HYUNDAI MOTOR AMERICA

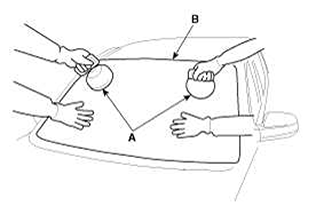

Remove the windshield glass (B) carefully using the glass holder (A).

Fig 8: Removing Windshield Glass Carefully Using Glass Holder

Courtesy of HYUNDAI MOTOR AMERICA
