Repair Procedures: Inspection: Notes

  1. Check for resistance between terminals in each switch position (LH).

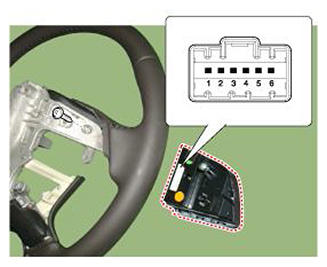

    Fig 1: Switch (LH) Connector Terminals
    G11405999Courtesy of HYUNDAI MOTOR AMERICA
