Home >> Genesis >> 2017 >> G90 3.3T Premium, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual/Navigation (AVN) System >> Rear Integrated Controller >> Components and Components Location >> Components

Components and Components Location: Components

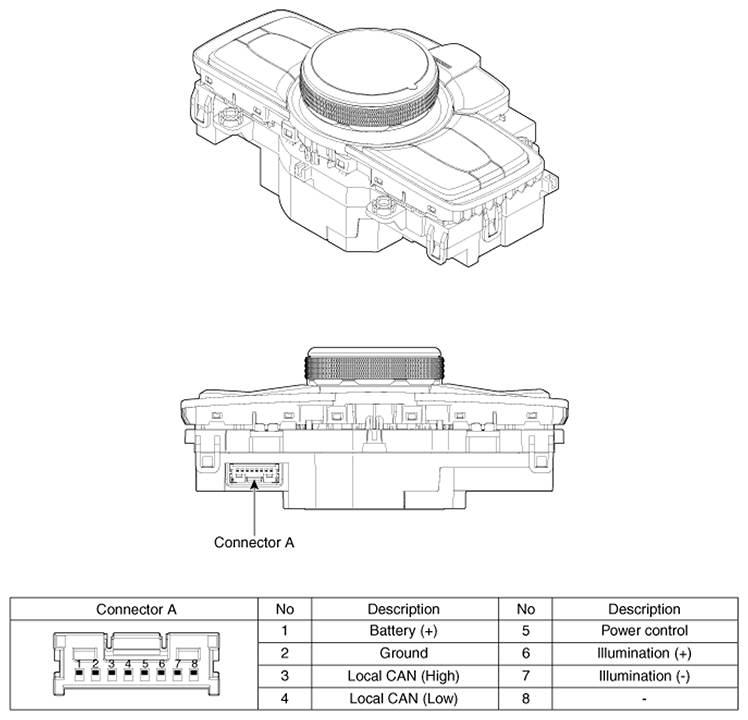

Fig 1: Locating Rear Integrated Controller Connector

G11405989

Courtesy of HYUNDAI MOTOR AMERICA
