Home >> Genesis >> 2017 >> G90 3.3T Premium, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual/Navigation (AVN) System >> Front Monitor >> Components and Components Location >> Components

Components and Components Location: Components

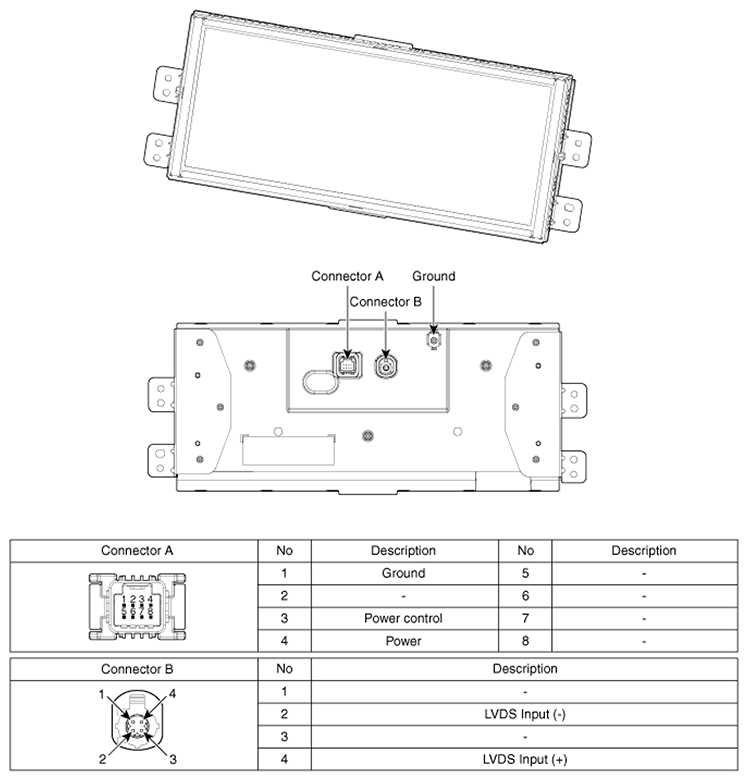

Fig 1: Locating Front Monitor Connectors

G11405981

Courtesy of HYUNDAI MOTOR AMERICA
