Front Keyboard Unit

Disconnect the negative (-) battery terminal.
Remove the floor console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Remove the front integrated controller (A) after loosening the mounting screws.

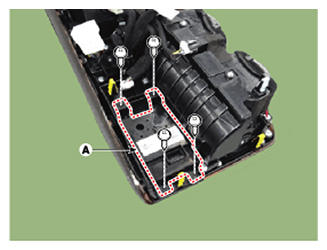

Fig 1: Removing Front Integrated Controller With Mounting Screws

Courtesy of HYUNDAI MOTOR AMERICA
