Components and Components Location: Components

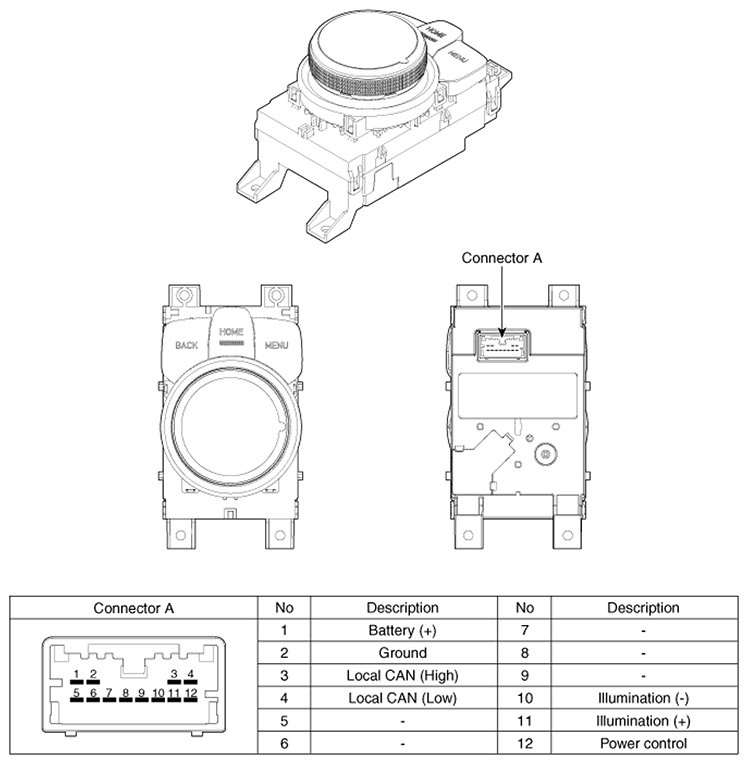

Fig 1: Locating Front Integrated Controller Connector

G11405987

Courtesy of HYUNDAI MOTOR AMERICA
