Components and Components Location: Components

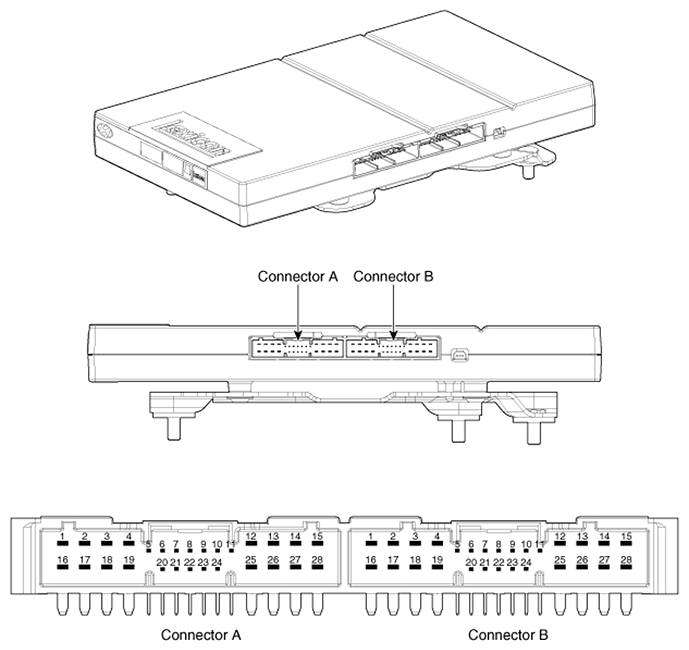

Fig 1: Locating External Amp Connectors
G11405983Courtesy of HYUNDAI MOTOR AMERICA
Type A Type B
No Connector A Connector B No Connector A Connector B
1 Battery (+) Front center speaker (+) 1 Battery (+) Front center speaker (+)
2 Battery (+) Subwoofer speaker (+) 2 Battery (+) Subwoofer speaker (+)
3 Battery (+) Front right door speaker (+) 3 Battery (+) Front right door speaker (+)
4 Battery (+) Front left door speaker (+) 4 Battery (+) Front left door speaker (+)
5 - - 5 - -
6 MM-CAN (High) - 6 MM-CAN (High) -
7 MM-CAN (Low) - 7 MM-CAN (Low) -
8 ACC - 8 ACC -
9 Navigation voice (+) - 9 Navigation voice (+) -
10 - - 10 - -
11 - - 11 - -
12 - Rear right door tweeter speaker (+) 12 Rear right midTweeter speaker (+) Rear right door speaker (+)
13 - Rear left door tweeter speaker (+) 13 Rear left midTweeter speaker (+) Rear left door speaker (+)
14 Front right mid tweeter speaker (+) Right surround speaker (+) 14 Front right mid tweeter speaker (+) Surround right speaker (+)
15 Front left mid tweeter speaker (+) Left surround speaker (+) 15 Front left mid tweeter speaker (+) Surround left speaker (+)
16 Ground Front center speaker (-) 16 Ground Front center speaker (-)
17 Ground Subwoofer speaker (-) 17 Ground Subwoofer speaker (-)
18 Ground Front right door speaker (-) 18 Ground Front right door speaker (-)
19 Ground Front left door speaker (-) 19 Ground Front left door speaker (-)
20 SPDIF (High) - 20 SPDIF (High) -
21 SPDIF (Low) - 21 SPDIF (Low) -
22 SPDIF (Ground) - 22 SPDIF (Ground) -
23 Navigation voice (-) - 23 Navigation voice (+) -
24 Ignition 1 - 24 Ignition 1 -
25 - Rear right door tweeter speaker (-) 25 Rear right mid tweeter speaker (-) Rear right door tweeter speaker (-)
26 - Rear left door tweeter speaker (-) 26 Rear left mid tweeter speaker (-) Rear left door tweeter speaker (-)
27 Front right mid tweeter speaker (-) Right surround speaker (-) 27 Front right mid tweeter speaker (-) Right surround speaker (-)
28 Front left mid tweeter speaker (-) Left surround speaker (-) 28 Front left mid tweeter speaker (-) Left surround speaker (-)
