Entertainment Systems
>>
Audio/Visual/Navigation (AVN) System
>>
Description and Operation
>>
Description
>>
System Block Diagram
System Block Diagram

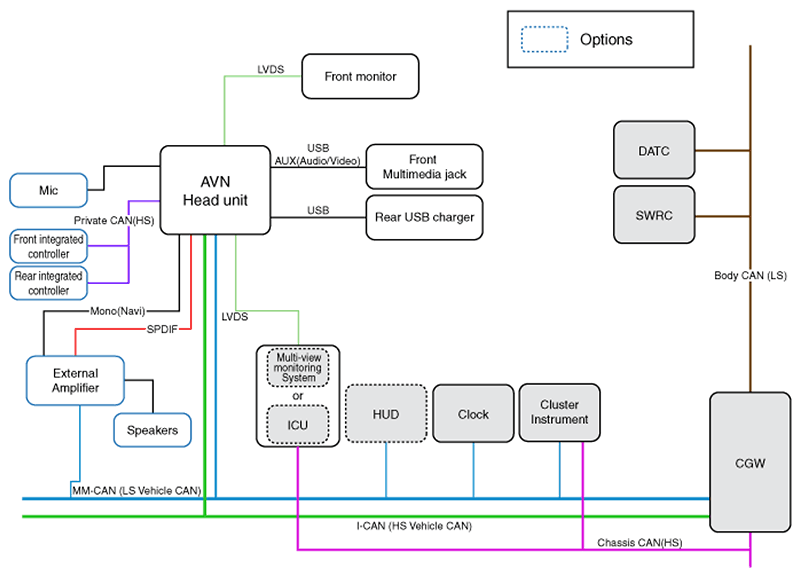

Fig 1: AVN Head Unit System Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
LVDS: Low Voltage Differential Signaling
MM-CAN: Multi-Media Controller Area Network
Courtesy of HYUNDAI MOTOR AMERICA
