Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

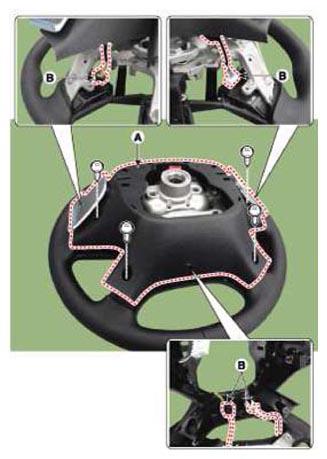

Remove the steering wheel back cover (A) after loosening the screws and disconnecting the connectors (B).

Fig 1: Removing Steering Wheel Back Cover Screws
Courtesy of HYUNDAI MOTOR AMERICA

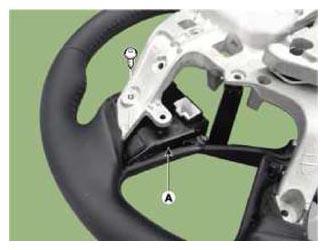

Remove the steering wheel remote control (A) after loosening the mounting screw.

Fig 2: Removing Steering Wheel Remote Control Mounting Screw
Courtesy of HYUNDAI MOTOR AMERICA
