Repair Procedures: Inspection

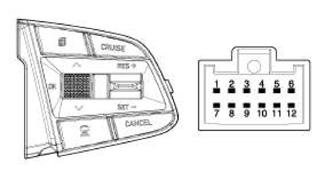

- Disconnect the cruise control switch connector.
- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function Switch Terminal Resistance (±1%) CANCEL 2 - 3 550 Ω SET (-) 2 - 3 880 Ω RES (+) 2 - 3 1.44 Ω CRUISE 2 - 3 2.54 Ω SCC 2 - 3 5.54 Ω - If not within specification, replace switch.
