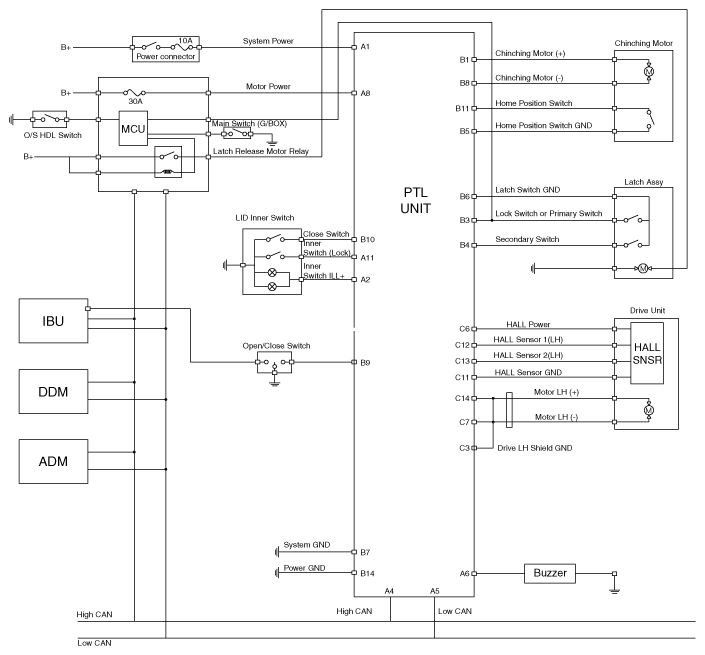

Home >> Genesis >> 2017 >> G90 3.3T Premium, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Power Trunk Module >> Power Trunk Module Drive Unit >> Schematic Diagrams >> Circuit Diagram
