Tolerance Compensation Environments

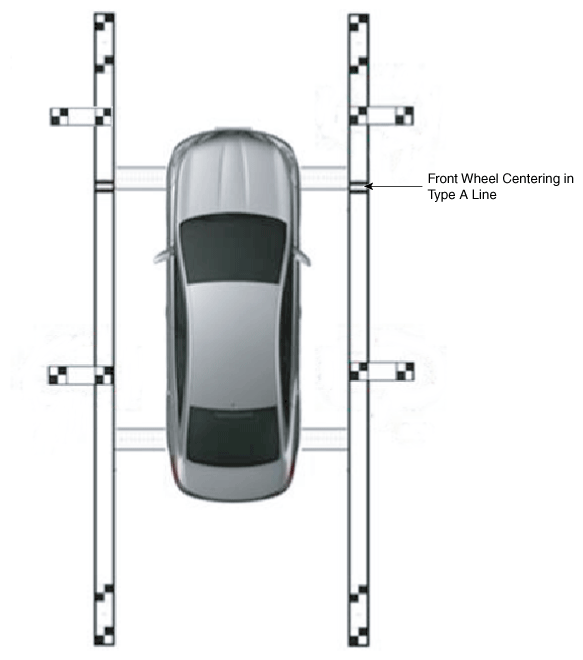

Fig 1: Multi-View Camera System Tolerance Compensation Environments

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

There are two types of tolerance compensation [Manual Tolerance Compensation] and [Automatic Tolerance Compensation].
The service center with the Multi-view Camera exclusive workshop performs [Automatic Tolerance Compensation].
The maintenance environment lacking an Multi-view Camera exclusive workshop performs [Manual Tolerance Compensation].
