Components and Components Location: Components

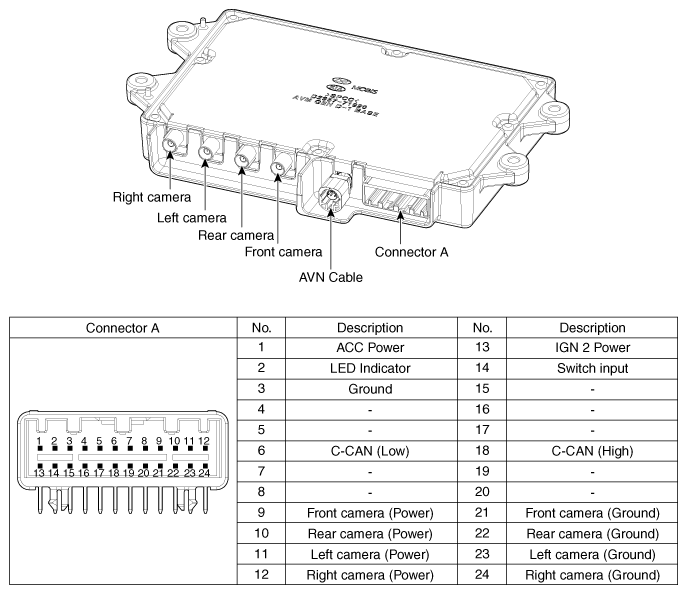

Fig 1: Multi-View Camera Unit Connector Terminals (1 Of 2)
G11419834Courtesy of HYUNDAI MOTOR AMERICA

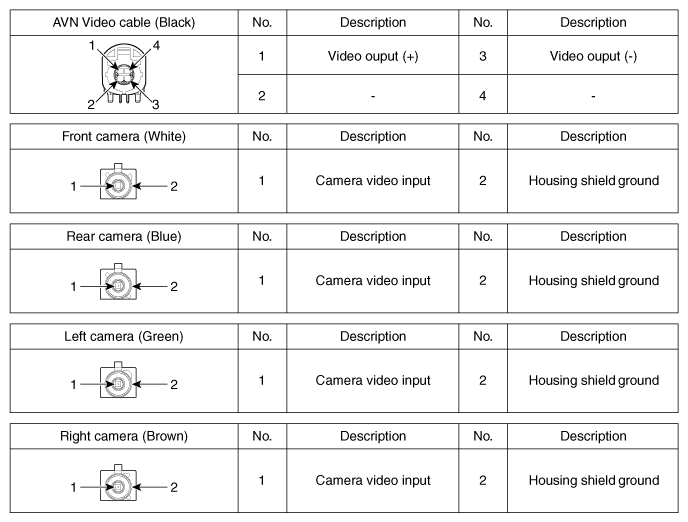

Fig 2: Multi-View Camera Unit Connector Terminals (2 Of 2)
G11419835Courtesy of HYUNDAI MOTOR AMERICA
