Repair Procedures: Removal
CAUTION:
- Automatic transmission is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
- Maintain clean condition so that foreign substance does not get into the automatic transmission.
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transmission.
- Automatic transmission fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
(Refer to Hydraulic system - "FLUID ")

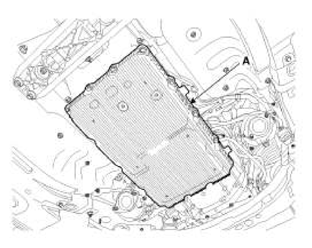

- Remove the valve body cover (A).
Tightening Torque:
13.7 - 15.7 N.m (1.4 - 1.6 kgf.m, 10.1 - 11.6 lb-ft)
CAUTION:- Replace the gasket before reinstalling the valve body cover.

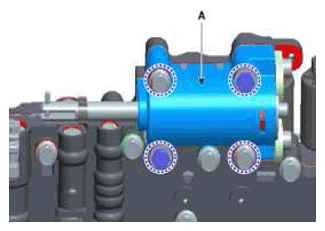

- Remove the parking body (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
