Repair Procedures: Installation

CAUTION:

Note the value (A) carefully and check the value again before assembly.
Inputting an invalid value may cause the abnormal shifting shock while TCM learning.

Fig 1: Locating 8LR Brake Control Solenoid Valve Value

Courtesy of HYUNDAI MOTOR AMERICA

Check if the pipe (A) is inserted on the marked area before mounting the valve body assembly.

Fig 2: Locating Valve Body Assembly Pipe Marked Area
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Inject Automatic Transmission Fluid. (Refer to FLUID - "Automatic Transmission System")
Clear the diagnostic trouble codes (DTC) using the GDS.
Information
- Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
Reset the automatic transmission adaptive values using the GDS.

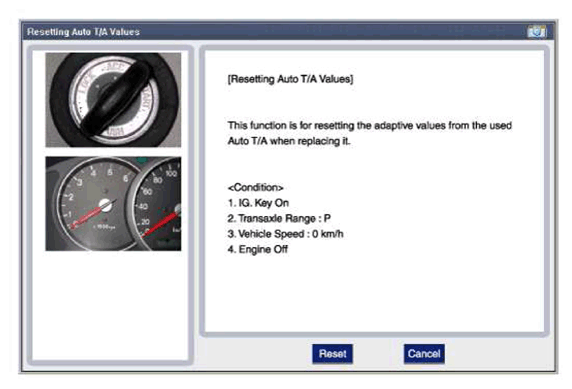

Fig 3: Screen Display - Resetting Automatic Transmission Adaptive Values
Courtesy of HYUNDAI MOTOR AMERICA
Input the oil pressure characteristics using the GDS.

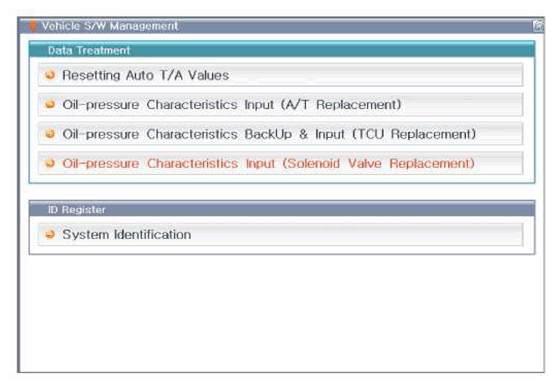

1. Select 'Oil-pressure Characteristics Input (Solenoid Valve Replacement)' in the S/W Management.

  Fig 4: Screen Display - Oil-Pressure Characteristics Input (Solenoid Valve Replacement; 1 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 5: Screen Display - Oil-Pressure Characteristics Input (Solenoid Valve Replacement; 2 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA

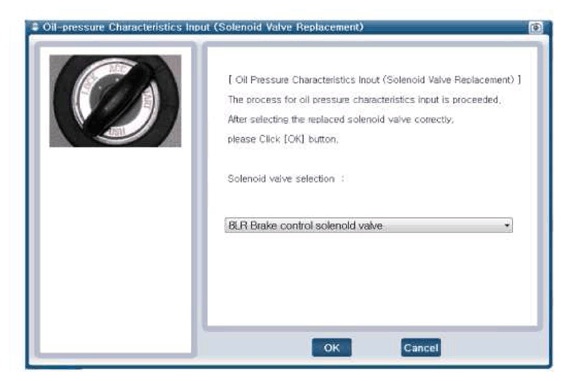

2. Select the replaced solenoid valve.

  Fig 6: Screen Display - Select Replaced Solenoid Valve
  Courtesy of HYUNDAI MOTOR AMERICA

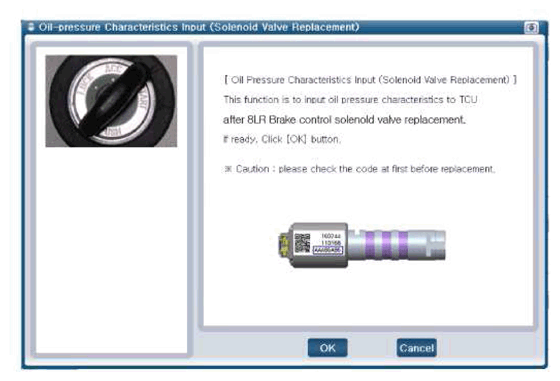

3. Check the code marked on the solenoid valve.
  CAUTION: (Check the code at first before replacement)

  Fig 7: Screen Display - Check Code Marked On Solenoid Valve
  Courtesy of HYUNDAI MOTOR AMERICA

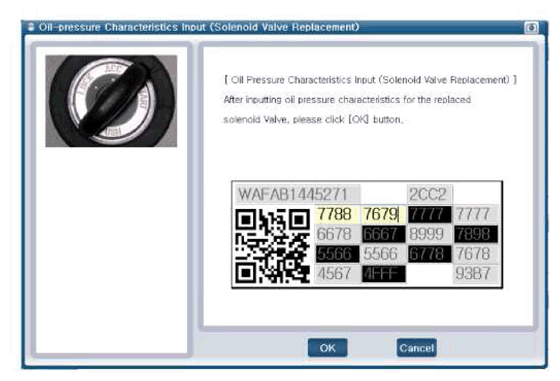

4. If the code is inputted 2 times correctly, the procedure is completed.

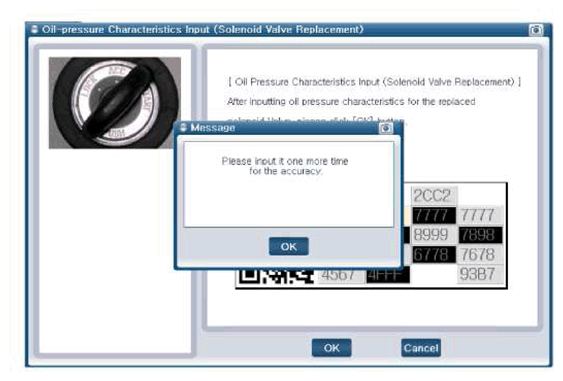

  Fig 8: Screen Display - Code Inputted 2 Times Procedure Completed (1 Of 4)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 9: Screen Display - Code Inputted 2 Times Procedure Completed (2 Of 4)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 10: Screen Display - Code Inputted 2 Times Procedure Completed (3 Of 4)
  Courtesy of HYUNDAI MOTOR AMERICA

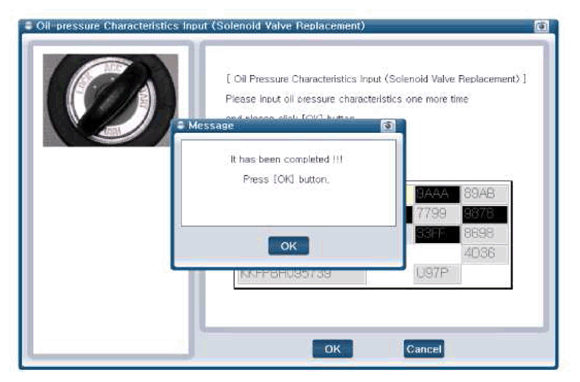

  Fig 11: Screen Display - Code Inputted 2 Times Procedure Completed (4 Of 4)
  Courtesy of HYUNDAI MOTOR AMERICA
In order to prevent start delay and gear shift shock during acceleration and start, perform TCM learning after replacing the transmission, TCM, and solenoid valve.
NOTE:
TCM Learning
1. Learning Overview and Purpose
  - It aims to correct the deviation between transmission products to reduce learning time and secure initial driving safety.
  - When gear shift shock has occurred at the 1-2-3-4-5-6-7-8 positions, delete the previous learning values using GDS device and perform TCM learning again.
2. Learning Conditions
  - Perform learning after replacing automatic transmission and TCM.
  - Maintain constant APS level in the case of upshift. (10% < APS < 25%)
  - Perform the following pattern at least three times (finish when the gear shifts stably).
3. TCM Learning Method
  1. Condition

    Hot engine (stable idle RPM)

    ATF temperature: 30 - 95°C
  2. Learning Method

    Learning with the vehicle stopped

    While pressing and holding the brake (vehicle is stationery), set the throttle opening to 0% and repeat the following procedure five times.

    Fig 12: Vehicle Stopped Timing Pattern
    Courtesy of HYUNDAI MOTOR AMERICA

    Learning with the vehicle running

    Maintain a consistent throttle opening at the D position and gradually shift from 1st gear position to 8th gear position one by one. Then, gradually shift from 8th gear position to 1st gear position one by one (brake: on, throttle opening: 0%).

    Throttle opening for upshift: 10 - 25%

    Repeat the above procedure three times.
  Fig 13: Gear Shift Position Timing Pattern
  Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- After inspecting the oil level and replacing the transmission fluid, remove the oil outside the automatic transmission. (Especially, remove the remaining oil between the transmission case and the oil fan.)
