Repair Procedures: Installation

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is the reverse of removal.
    CAUTION: Use a new washer (A) whenever installing.

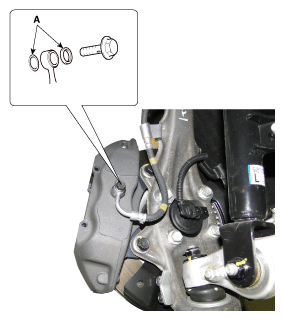

    Fig 1: Installing Washer
    G11800790Courtesy of KIA MOTORS AMERICA, INC.
  2. After installation, bleed the brake system.

    (Proceed to Brake system - "BRAKE SYSTEM BLEEDING ")

  3. Check for brake fluid leaks.
