Variable Force Solenoid (Intake)

[Bank 1]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the variable force solenoid connector (A).
3. Remove the installation bolt (B), and then remove the variable force solenoid(VFS) from the engine.

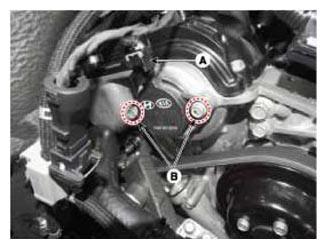

Fig 1: Variable Force Solenoid Connector And Installation Bolt - Bank 1

Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the variable force solenoid connector (A).
3. Remove the installation bolt (B), and then remove the variable force solenoid (VFS) from the engine.

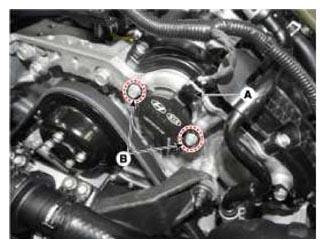

Fig 2: Variable Force Solenoid Connector And Installation Bolt - Bank 2

Courtesy of HYUNDAI MOTOR AMERICA
