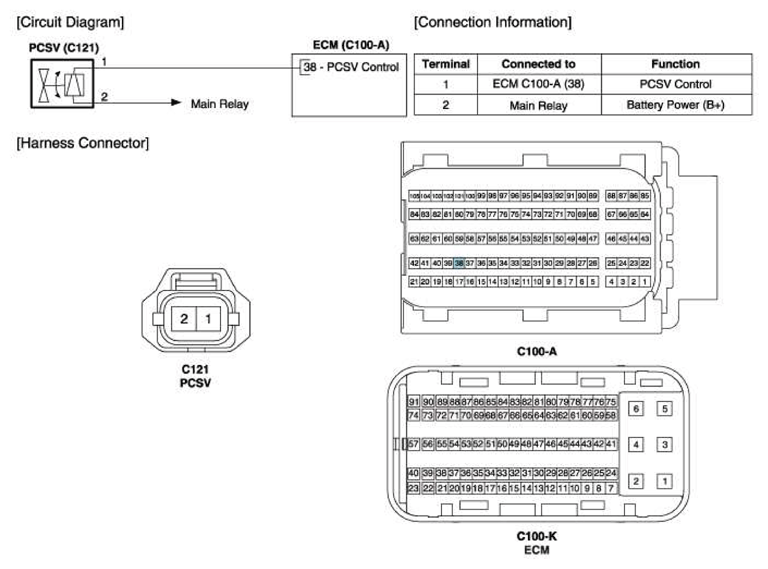

Home >> Genesis >> 2017 >> G90 3.3T Premium, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Purge Control Solenoid Valve (PCSV) >> Schematic Diagrams >> Circuit Diagram
