Home >> Genesis >> 2017 >> G90 3.3T Premium, AWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting System - 3.3L >> Troubleshooting

Starting System - 3.3L: Troubleshooting

NOTE:
  • The Battery must be in good condition and fully charged for this troubleshooting.

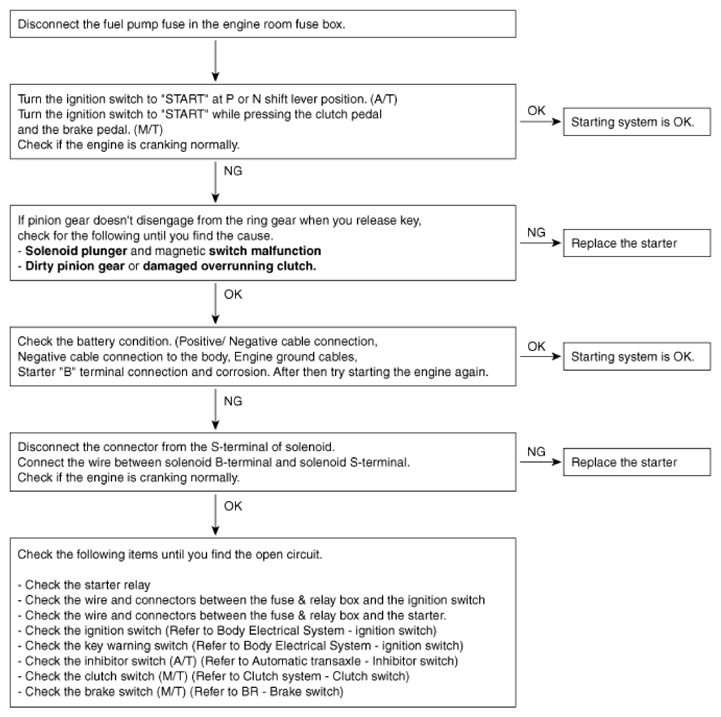

Fig 1: Starting System Troubleshooting Flowchart
G11412012Courtesy of HYUNDAI MOTOR AMERICA
