Free Running Inspection
- Place the starter motor in a vise equipped with soft jaws and connect a fully-charged 12-volt battery to starter motor as follows.

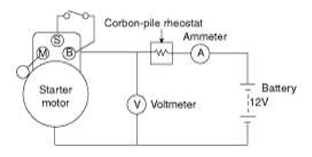

- Connect a test ammeter (150-ampere scale) and carbon pile rheostats displayed is the image.
- Connect a voltmeter (15-volt scale) across starter motor.
Courtesy of HYUNDAI MOTOR AMERICA
- Rotate carbon pile to the OFF position.
- Connect the battery cable from battery's negative post to the starter motor body.
- Adjust until battery voltage displayed on the voltmeter reads 11volts.
- Confirm that the maximum amperage is within the specifications and that the starter motor turns smoothly and freely.
| Items |
Specification |
| Current (Max.) |
105 A |
| Speed (Min.) |
2, 800 rpm |
