Components and Components Location: Components

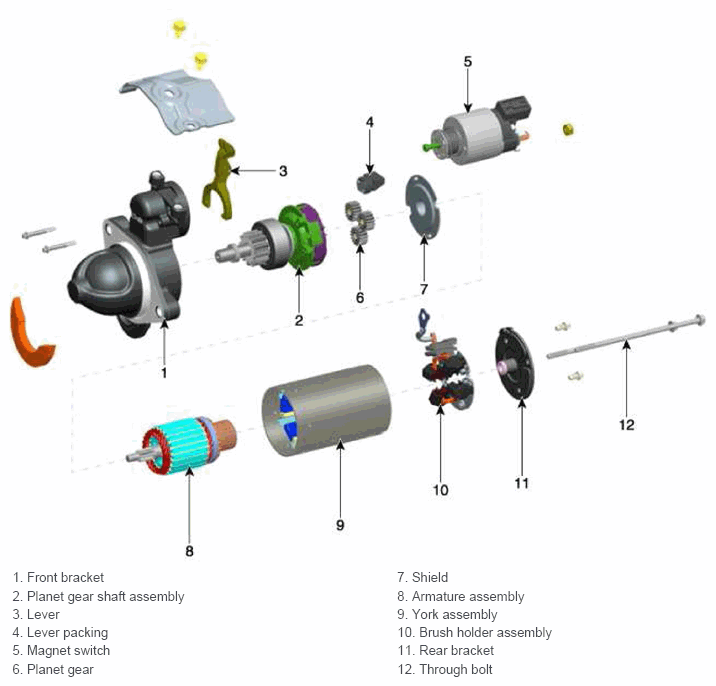

Fig 1: Exploded View Of Starter

G11412014

Courtesy of HYUNDAI MOTOR AMERICA
