Repair Procedures: Inspection

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the fuse box cover.
Remove the starter relay (A).

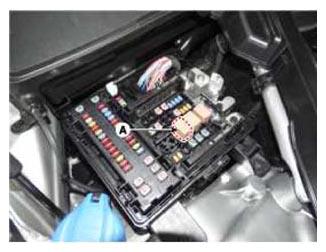

Fig 1: Locating Starter Relay
Courtesy of HYUNDAI MOTOR AMERICA

Using an ohmmeter, check that there is continuity between each terminal.

Terminal	Continuity
30 - 87	NO
85 - 86	YES

Apply 12V to between terminals 85 and 86, and then check for continuity between terminals 30 and 87.

Fig 2: Checking Continuity Between Starter Relay Terminals
Courtesy of HYUNDAI MOTOR AMERICA
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
