Repair Procedures: Removal

  1. Turn Ignition Switch OFF and disconnect the BATTERY (-) Cable from the Battery.
  2. Remove the driver side crash pad side cover.

    (Refer to Body - "CRASH PAD ")

  3. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD ")

  4. Remove the EPB switch after removing 4 screws from the crash pad lower panel.

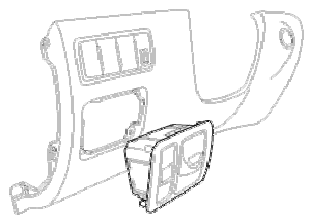

Fig 1: Removing EPB Switch
G11069218Courtesy of HYUNDAI MOTOR AMERICA
