Projected Dimensions

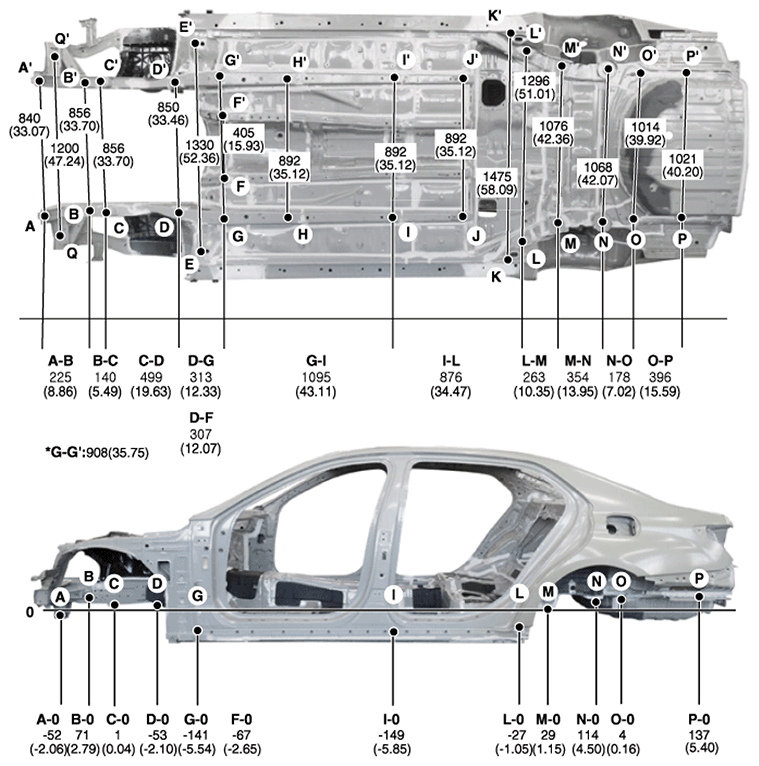

Fig 1: Under Body Measurement Points - Projected Dimensions (Sedan)

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this image are actual-measurement dimensions. [Unit: mm (inch)]
