Signal Waveform & Data

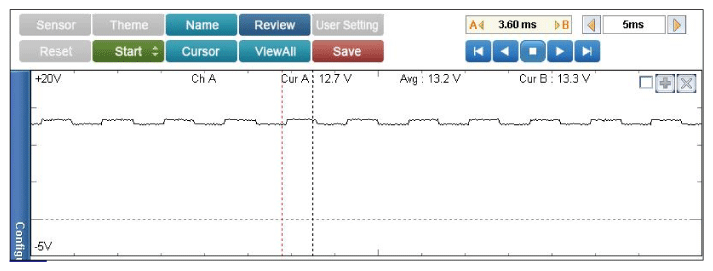

Fig 1: Scantool Display - Normal Waveform Of Wheel Speed Sensor At Idle (High: Approx 13.3V And Low: Approx 12.7V)

Courtesy of HYUNDAI MOTOR AMERICA

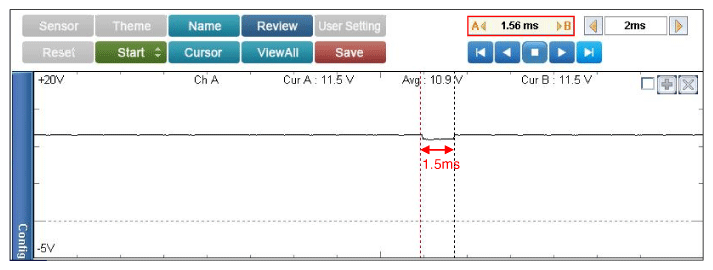

Fig 2: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor At Standing Still

Courtesy of HYUNDAI MOTOR AMERICA

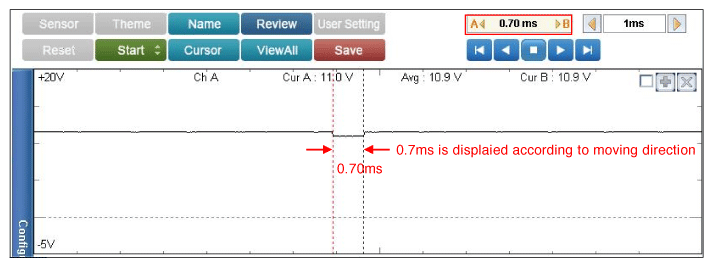

Fig 3: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor According To Moving Condition At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor According To Moving Condition At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

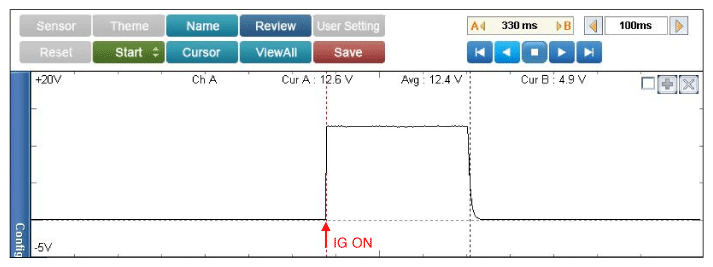

Fig 5: Scantool Display - Normal Waveform At Power Terminal Of Wheel Speed Sensor With Disconnected Connector At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

Smart type wheel speed sensor is applied to the rear wheel speed sensor of the vehicle equipped SPAS
