Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the rear seat.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  4. Remove the canter pillar upper trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  5. Remove the rear pillar trim.

    (Refer to Interior Trim - "REAR PILLAR TRIM ")

  6. Remove the sub sunvisor.

    (Refer to Roof Trim - "SUNVISOR ")

  7. Remove the sunvisor and retainer.

    (Refer to Roof Trim - "SUNVISOR ")

  8. Remove the assist handle.

    (Refer to Roof Trim - "ASSIST HANDLE ")

  9. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

  10. Remove the room lamp.

    (Refer to Body Electrical System - "ROOM LAMP ")

  11. Disconnect the ECM mirror connector.

    (Refer to ELECTRO CHROMIC INSIDE REAR VIEW MIRROR )

  12. Disconnect the rain sensor connector.

    (Refer to Body Electrical System - "RAIN SENSOR ")

  13. Disconnect the lane departure warning system (LDWS) unit connector.

    (Refer to LKAS UNIT )

  14. Disconnect the roof trim main connectors (A) and the mounting clips in the front pillar.

    [Driver's]

    G11340873

    [Passenger's]

    G11340874
  15. Disconnect the connectors (A) and the mounting clips in the rear pillar.

    [LH]

    G11340875

    [RH]

    G11340876

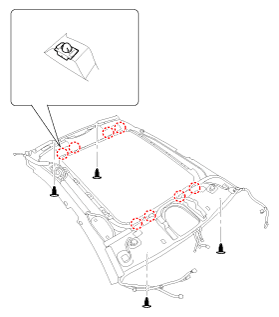

  16. Using a clip remover, detach the roof trim assembly pin-type retainers (A).
    G11340877
  17. Remove the roof trim assembly (A) from the body panel and then carry it out of the vehicle through the tailgate.
    G11340878
  18. Remove the vanity lamp.

    (Refer to Room Lamp )

  19. Remove roof trim wiring harness (A) from the roof trim (B).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.
    G11340879

    information

    1. When installing the roof trim wiring harness (A) on the roof trim (B), apply the hot melt continuously by using the hot melt gun tool.
    2. Put anti-noise pad (C) on roof trim (B) to prevent the noise.
  20. Install in the reverse order of removal.

    information

    • Make sure the connector is connected properly.
    • Replace any damaged clips.
