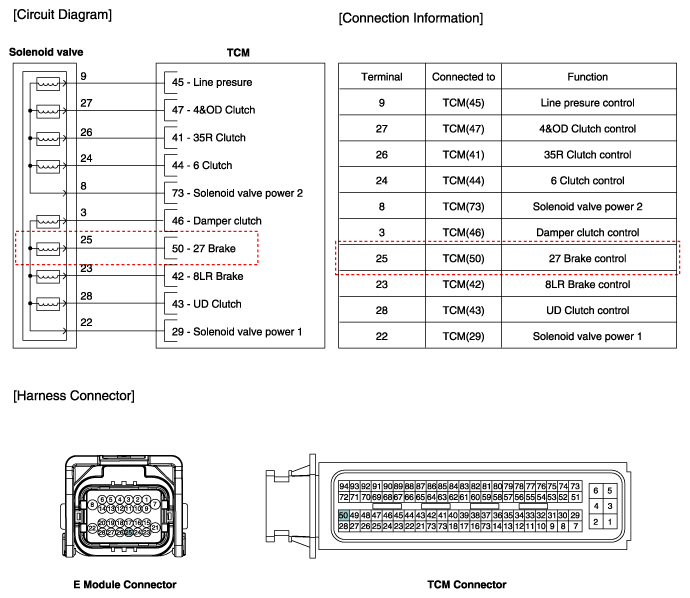

Home >> Genesis >> 2017 >> G80 3.8, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Control System >> 27 Brake Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
