Special Service Tools
SUSPENSION SYSTEM SPECIAL SERVICE TOOLS
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Strut spring compressor 09546-26000 |
Compression of coil spring | |
| Ball joint remover 09568-2J100 |
Removal of ball joint | |

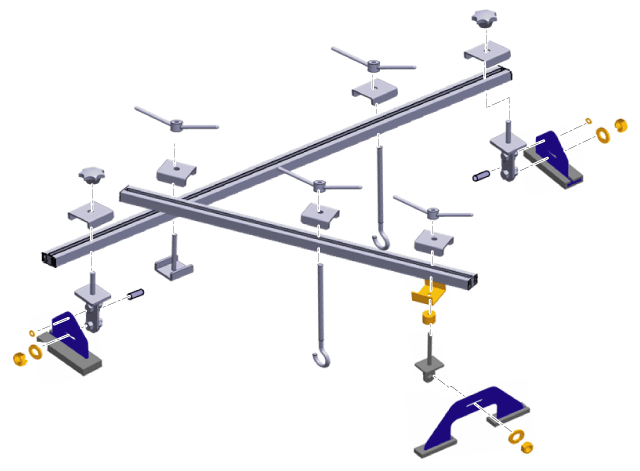

| Engine support fixture (bar) 09200-3N000 |
Removal and installation of the transaxle. Except lower supporter, use beam only with new engine support fixture supporter (SST No.:09200-2S100) |
|
| Engine support fixture (supporter) 09200-2S100 |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S200) |
|
| Engine support fixture (supporter) 09200-2S200 |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the adapter (SST No.: 09200-2S100) |
