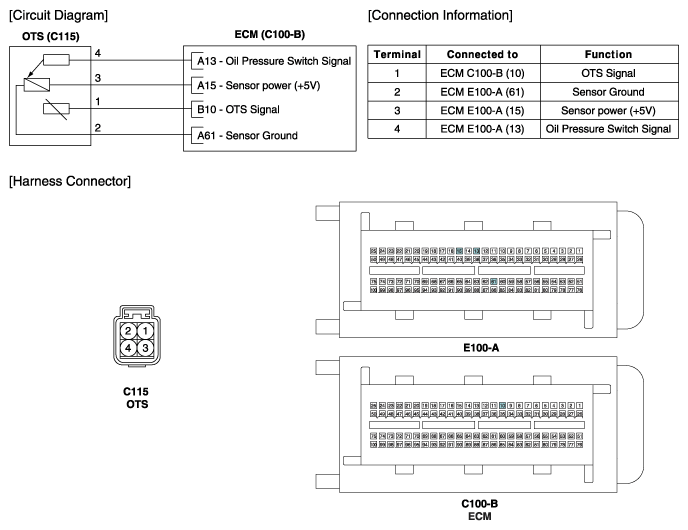

Home >> Genesis >> 2017 >> G80 3.8, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> CVVT Oil Temperature Sensor (OTS) >> Schematic Diagrams >> Circuit Diagram
