Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the crash pad side garnish assembly.

    (Refer to Crash Pad - "CRASH PAD SIDE GARNISH ASSEMBLY [RH] ")

  4. Remove the center facia panel assembly.

    (Refer to HEATER & A/C CONTROL UNIT Heating, Ventilation and Air Conditioning )

  5. Remove the monitor facia panel (A).
    G11340842Courtesy of
  6. Remove the AVN head unit.

    (Refer to AVN (AUDIO VIDEO NAVIGATION) HEAD UNIT Body Electrical System )

  7. Remove the cluster fascia panel.

    (Refer to Crash Pad - "CLUSTER FASCIA PANEL ")

  8. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  9. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  10. Remove the glove box.

    (Refer to Crash Pad - "GLOVE BOX ")

  11. Remove the crash pad under cover [RH].

    (Refer to Crash Pad - "CRASH PAD UNDER COVER [RH] ")

  12. After loosening the mounting screws, bolts and nuts, remove the glove box housing (A) by using a screw driver.
    G11340843Courtesy of
  13. Disconnect the glove box lamp connector (A), the main trunk switch connector (B) and the lamp switch connector (C).
    G11340844Courtesy of

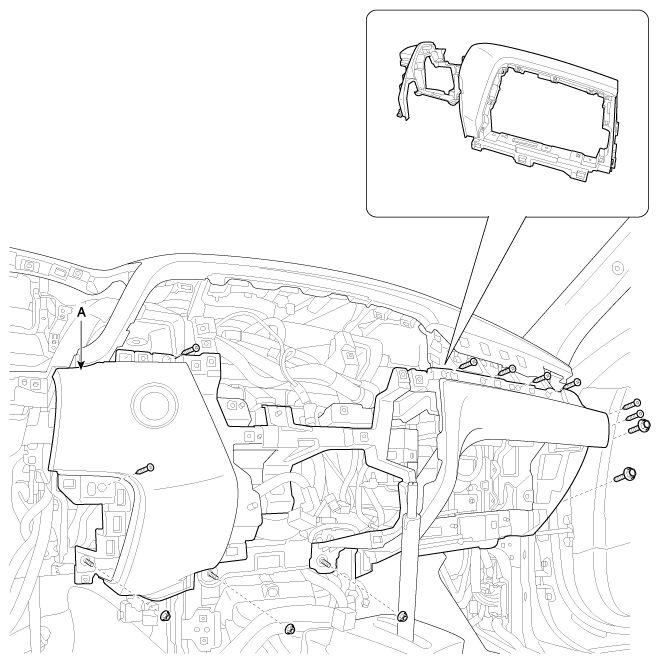

  14. After loosening the mounting screws, bolts and nuts, remove the crash pad main lower assembly (A).
    G11340845Courtesy of
  15. Remove the start button connector (A).
    G11340846Courtesy of
  16. Install in the reverse order of removal.

    information

    • Make sure the connector is connected properly.
    • Replace any damage clips.
