Body Repair

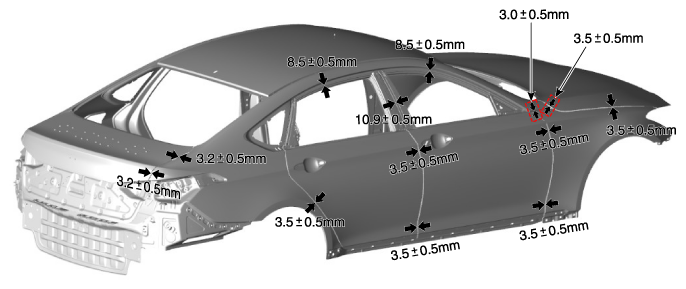

Fig 1: Body Panel Gaps Measurement Dimensions

G11340443

Courtesy of HYUNDAI MOTOR AMERICA
