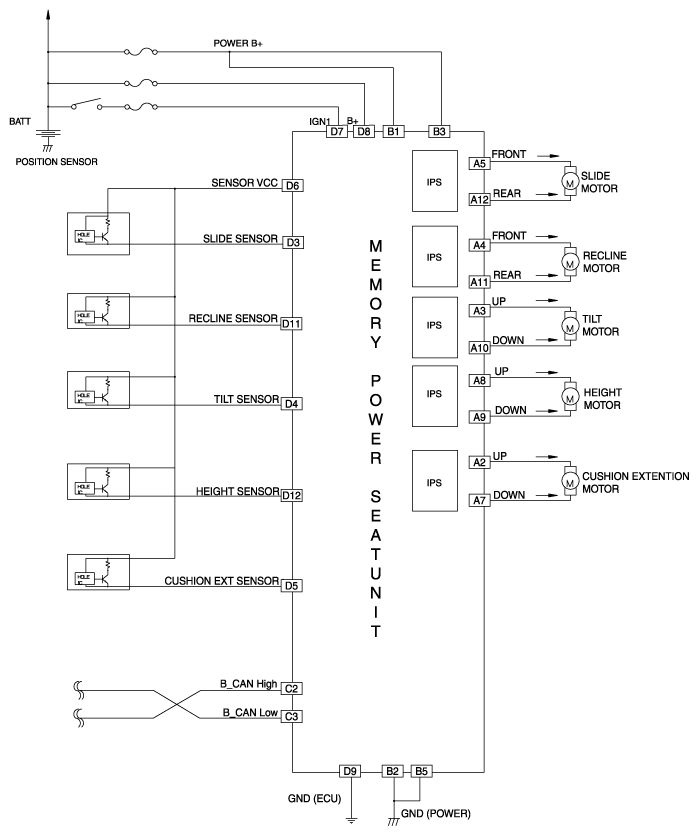

Home >> Genesis >> 2017 >> G80 3.8, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> Memory power seat unit >> Schematic Diagrams >> Circuit Diagram
