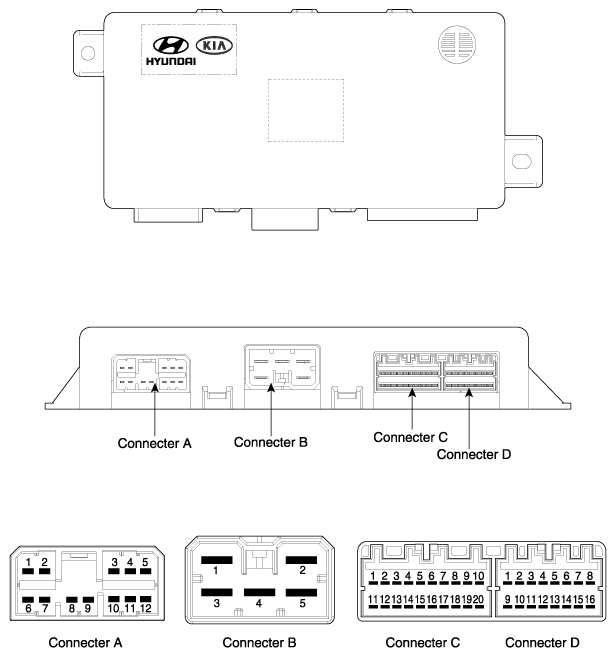

| 1 |
- |
B+ (Power) |
- |
- |
| 2 |
Cushion extension moter (Front) |
GND (Power) |
B CAN High |
- |
| 3 |
Front tilt motor (UP) |
B+ (Power) |
B CAN Low |
Slide hall sensor |
| 4 |
Back motor (Front) |
- |
- |
Tilt hall sensor |
| 5 |
Slide motor (Front) |
GND (Power) |
- |
Cushion ext hall sensor |
| 6 |
- |
|
- |
Sensor VCC |
| 7 |
Cushion extends motor (Rear) |
- |
IGN1 |
| 8 |
Rear height sensor (UP) |
- |
B+ (ECU) |
| 9 |
Rear height sensor (Down) |
- |
GND (ECU) |
| 10 |
Front tilt motor (Down) |
- |
- |
| 11 |
Back motor (Rear) |
- |
Recline hall sensor |
| 12 |
Slide Motor (Rear) |
- |
Height hall sensor |
| 13 |
|
- |
- |
| 14 |
- |
- |
| 15 |
- |
- |
| 16 |
- |
- |
| 17 |
- |
|
| 18 |
- |
| 19 |
- |
| 20 |
- |
