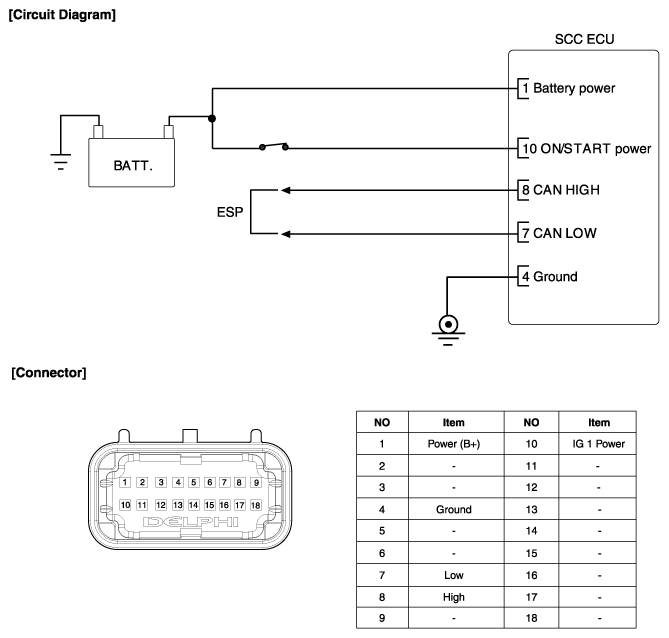

Home >> Genesis >> 2017 >> G80 3.8, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Cruise Control Systems >> Smart Cruise Control System - 3.8L >> Smart Cruise Control Unit >> Schematic Diagrams >> Circuit Diagram
