Projected Dimensions: (2WD)

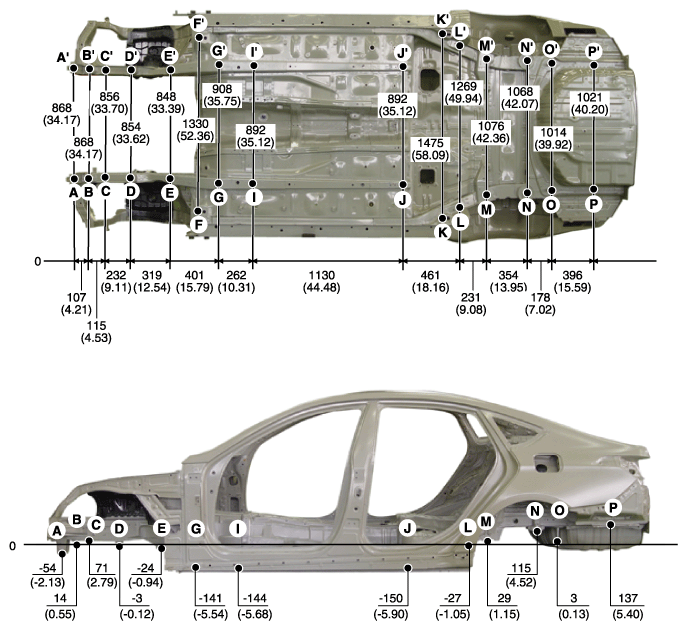

Fig 1: Under Body (2WD) Measurement Points - Projected Dimensions
G11340428Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure are actual-measurement dimensions. [Unit: mm (inch)]
